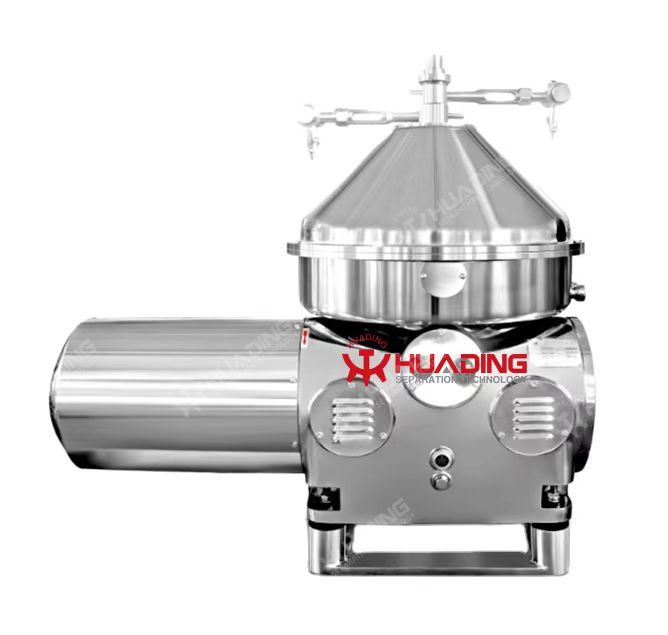

GF series - separation
GF series - separation

GF series - separation

Small
Medium
Large Manual
Semi-automatic
Fully automatic Sedimentation
Filtration
Centrifugal force Standard
Custom type

Huading GF series tubular centrifuges focus on liquid-liquid separation and liquid-liquid-solid three-phase separation, and are particularly suitable for complex systems with small density difference between the two phases (such as oil-water separation) or containing trace solids.
GF series covers all scenarios from laboratory level to industrial level, and the core models include GF45, GF75, GF105, GF125, GF137, GF150.

Get A Quote
PREV：No previous articleNEXT：GQ series - clarification
  • Introduction
  • Parameter
  • Contact Us

High-precision separation capability:


  • Ultrafine particle processing

    GF series can process nanoparticles with a particle size as low as 0.1μm, such as graphene dispersion purification, through aspect ratio optimization (drum effective height/diameter up to 4-8:1) and separation factor exceeding 21,000 (GF75/105).

  • Three-phase separation technology

    A multi-layer guide structure is set in the drum to achieve liquid-liquid-solid synchronous separation through density gradient, which is typically used for impurity, water and oil stratification of biodiesel.



Intelligence and stability:


  • Dynamic balancing system

    Adopts German FAG bearings and Swiss ABB motors, supports continuous operation for more than 24 hours, and controls the vibration frequency at 0.1-3.7Hz to avoid shear damage of delicate biological samples (such as plasma)

  • CIP online cleaning

    316L stainless steel material and modular design, supports acid and alkali cleaning agent circulation, and meets GMP pharmaceutical standards.

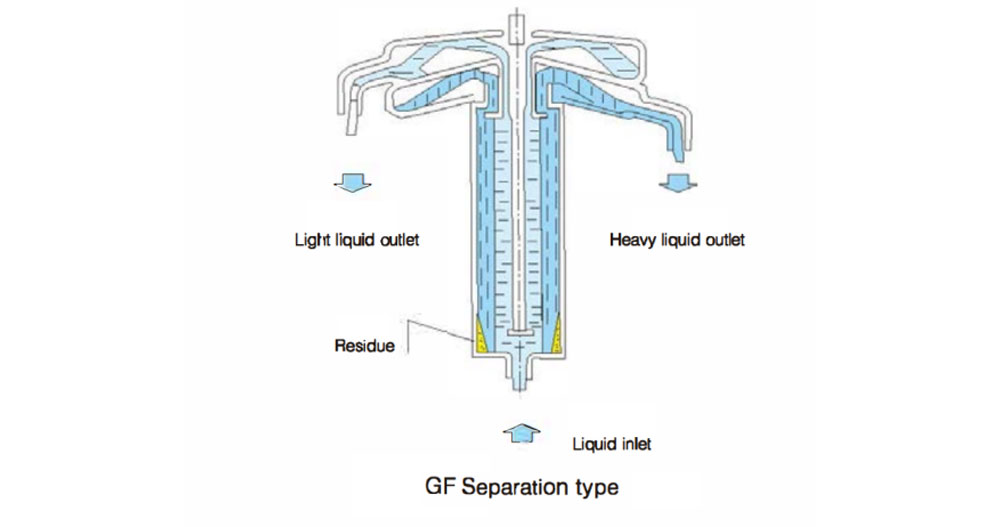

Detailed drawing

Parametric

Model BOWL Passing capacity (Kg/h) Motor power (kw) Motor speed (r/min) Mahinec weight  (kg)
Diameter Height Volume Rotation speed Separation factor
GF45  GQ45 45 280 0.45 25000~50000 60000 150 0.75 6000~12000 90
GF75  GQ75 75 450 2.7 19000~21000 22500 500 1.5 2880 300
GF105  GQ105 105 730 6 16300~19000 21000 1500 2.2 2880 480
GF125  GQ125 125 730 7.4 14000~16000 18000 2000 3 2880 520
GQ137  GF137 137 730 9 14000~15000 17000 3000 3 2880 550
GF150  GQ150 142 730 10 14000~15000 17000 3000 3 2880 550
