Custom Decanter Separator

The decanter centrifuge is a type of machinery that performs continuous separation of materials with density differences in suspensions using the centrifugal sedimentation principle. Its basic principle is as follows: The bowl and feeding screw rotate at high speed with a certain differential speed between them. Materials are continuously introduced through the feed tube into the inner cylinder of the spiral material pusher, then enter the bowl after acceleration. Under the centrifugal force field, the heavier solids will deposit on the bowl walls and form residue layers. The spiral material pusher will continuously push the deposited solids to the tapered end of the bowl and discharge them from the machine through the residue outlet after dehydration in the drying area.

Custom Decanter Centrifuge Manufacturers

The machine can achieve continuous feeding, sedimentation, separation, washing, and discharging during full-speed operation. It features a compact structure, continuous operation, stable running, strong adaptability to materials to be separated, high production capacity, convenient maintenance, etc. It is suitable for separating suspensions containing solids with a particle diameter greater than 0.005mm and concentrations ranging from 2-40%. It is widely used in industries such as the chemical industry, light industry, medicine, food, environmental protection, etc.

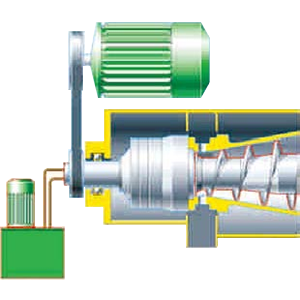

  • Hydraullc driving

    ln hydraulic driving, the bow and screw are driven by the variablefrequency motor + frequency converter + hydraulic mator.

    Under the hydraulic driving mode, the difterential speed betweenthe bow and screw can be adjusted precisely through the hydraulic motar. When running at a very low differential rotation speed, the precision and stability are high-quality to those under other driving modes. When the bowl runs normally, the bowl and screwwill run at certain constant speeds. Once the load of the spiral material pusher increases, the hydraulic motor will adjust the spiral material power to run at an accelerated speed to avoid material blocking. When the machine is stopped for washing due to material blocking, the hydraulic system can separately drive the spiral material pusher to run so as to greatly improve washing maintenance efficiency.

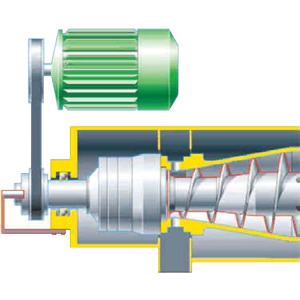

  • Single-motor driving

    ln single-motor driving, the bowl and screw are driven by onevariable frequency motor + frequency converter. This driving mode is simple, the operation is convenient, and the manufacturing costs are relatively low.

    Single-motor driving is mainly used for materials with a constant solid content and those having no strict requirements for the water content of discharged solids. As there is no necessary differentialspeed adjusting mechanism, the differential speed between bowland screw can only be realized through changing the gear transmission ratio or the rotation speed of the bowl.

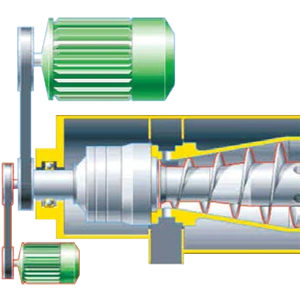

  • Double-motor driving

    ln double-motor driving, the bowl and screw are driven by two variable frequency motors + two frequency converters.

    Under the double-motor driving mode, the differential speed between the bowl and screw can be adjusted through simple adjustment of the rotation speed of the motor. Therefore, this driving mode is widely used for materials without a constant solid content and those having strict requirements for the water content of discharged solids.

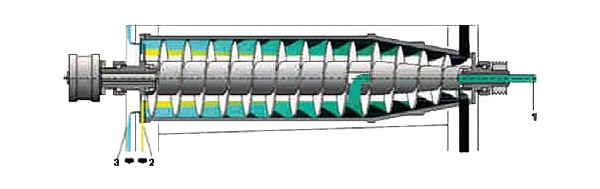

  • Liquid-solid two-phase decanter centrifuge

    1. Feeding

    2. Liquid

    3. Solid

    4. Sedimentation pool

    5. Dehydration area

    Two-phase working principle

    After entering the cavity of the spiral material pusher through the feed tube, the suspensions will enter the cavity of the bowl through the material vent. The solids after sedimentation will move to the small end af the bow under the pushing action at the differential speed of the screw, and be finally discharged from the solid discharge port. Under the action of centrifugal force, the liquids will form a hollow liquid ring and move to the longer end of the bow. After running over the adjustable overbaffle, they will be discharged from the liquid outlet under the action of gravity.

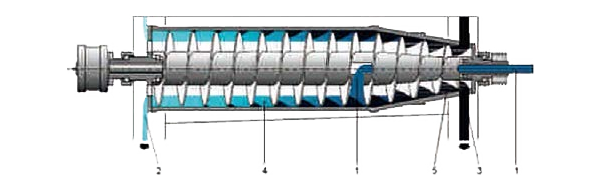

  • Liquld-llquld -solld three phase decanter centrifuge

    1. Feeding

    2. Light liquid

    3. Heavy liquid

    4. Sold

    Three-phase working principle

    The bowl and screw make high-speed rotation with a certain differential speed between them. The materials will enter the bowl from the teod tube. Under the action of centrifugal force field, the liquids of high specific weight will accumulate on the inner walls of the bowl and be discharged through the centrifugal pump or overflow plate. The liquids of low specific weight will form an inner liquid ring, stick to the surfaces of heavy liquids, and be discharged from the overflow channel. Under the action ot the spiral material pusher, the solids in the materials will be continuously pushed to the taper end of the bow and discharged from the residue outlet after going through the drying area

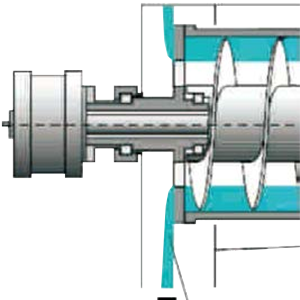

  • Overflow baffie-discharging thout back pressure

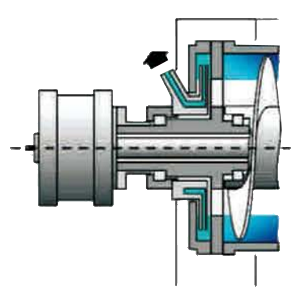

  • Adjustable centrifugal pump - with back pressure material

Company
Yixing Huading Machinery Co.,Ltd.
Yixing Huading Machinery Co.,Ltd. (Huading Separator) was established in 1954. It is reputable China Decanter centrifuge Manufacturers and Custom Decanter Separator Suppliers of specialized products and engineering solutions in China, relying on its own key technologies for clarification, purification, and concentration.
The equipment (disc centrifuge, decanter centrifuge), systems, and services provided by Huading are specifically designed to help customers improve the performance of optimized processes. The solutions provided by Huading can help customers solve separation and filtration problems in the production process.
Huading's disc centrifuges and decanter centrifuges serve the industries of biomedicine, beverages, plant extraction, dairy products, the oil industry, chemical energy, water treatment, and other industries. The capacity of disc centrifuges and decanter centrifuges ranges from experimental 500L/H to industrial 90T/H, with a total of more than 100 standard models. China Ting's organization works closely with customers to help them stay ahead of the industry.
Efficient, powerful, and reliable. For more than 50 years, China Ting separators have always played the role of defender in the field of centrifugal separation technology. Therefore, it can be said that China Ting's development process has not only brought about its responsibility to customers, but also created the company's vision.
Certificate Of Honor
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
Knowledge
Decanter centrifuge Industry knowledge

Key Features and Advantages of Decanter Centrifuges

Decanter centrifuges excel in continuous operation, which is one of their most significant advantages. In industries where large quantities of material need to be processed without interruption, these machines are indispensable. The continuous operation allows the centrifuge to process materials without halting for each batch, thereby enabling higher throughput and a more consistent production rate. This feature is particularly crucial in industries such as wastewater treatment, oil recovery, and food processing, where time is a critical factor in maintaining production schedules. For instance, in wastewater treatment, continuous operation allows the separation of solids from effluent water without having to stop and restart the process. This results in steady processing and ensures that the treated water is consistently compliant with environmental regulations. In the food and beverage industry, decanter centrifuges are used to clarify juices and extract valuable liquids, all while maintaining continuous operations. This high throughput allows for economies of scale, meaning that large quantities of product can be processed efficiently and cost-effectively. By reducing downtime, decanter centrifuges ultimately help lower labor and operational costs, increasing profitability for industries that depend on high-volume processing. For companies like Yixing Huading Machinery Co., Ltd., which has decades of experience in centrifuge design, the ability to provide continuous, high-capacity machines enables us to meet the needs of industries requiring large-scale production. Whether the task is small-scale laboratory experiments or large industrial processes, Huading’s decanter centrifuges ensure that our clients' production lines remain operational without significant interruptions.

Durability is an essential characteristic of decanter centrifuges, particularly in industries where equipment operates under harsh conditions. The construction of decanter centrifuges, using high-quality materials such as stainless steel and advanced alloys, ensures that these machines are capable of withstanding the stress of high-speed rotations, abrasive materials, and corrosive substances. This makes them an excellent choice for industries such as chemical processing, oil and gas, and mining, where the equipment may be exposed to harsh chemicals or abrasive solids. Decanter centrifuges are designed with components that resist wear and tear over extended periods of use. The high-torque motors and precision-engineered parts are built to last, even under the most demanding circumstances. This robust construction not only increases the machine's operational lifespan but also reduces the frequency of repairs and downtime, leading to long-term savings in maintenance costs. In many cases, the maintenance cost savings from a durable decanter centrifuge can exceed the initial investment, making it a sound financial decision for businesses in demanding industries. Yixing Huading Machinery Co., Ltd. ensures that all their decanter centrifuges are constructed with top-tier materials that withstand even the toughest conditions. With decades of experience in providing equipment to industries such as water treatment and biomedicine, Huading has engineered machines that balance durability with performance. The company's focus on creating reliable, long-lasting equipment allows our clients to experience less downtime, reduce operational interruptions, and minimize the need for frequent maintenance, contributing to overall process efficiency.

Energy efficiency has become a focal point for industries looking to reduce their environmental impact and lower operational costs. Decanter centrifuges are designed with several features that make them energy-efficient, ensuring that only the necessary amount of energy is used during operation. For example, modern decanter centrifuges incorporate variable frequency drives (VFDs), which allow operators to adjust the rotational speed of the machine based on the specific needs of the material being processed. This not only optimizes performance but also minimizes energy consumption. The energy-efficient design also helps reduce the overall carbon footprint of industrial operations. This is particularly important in industries where energy costs are a significant part of the budget, such as in wastewater treatment plants, chemical production, and even beverage manufacturing. The savings in energy costs from using decanter centrifuges with optimized efficiency can significantly improve the bottom line and contribute to a company’s sustainability efforts. Yixing Huading Machinery Co., Ltd. has integrated energy-saving technologies into its decanter centrifuges, ensuring that our machines not only perform efficiently but also minimize energy consumption. By carefully designing each component, Huading ensures that energy use is kept to a minimum while maintaining the machine's high performance. Our focus on energy efficiency provides long-term cost benefits for industries that prioritize both performance and sustainability.

One of the key advantages of decanter centrifuges is their low maintenance needs. These machines are built with components that are designed to be robust and resistant to wear and tear, reducing the frequency of repairs and the need for constant maintenance. In particular, the scroll and bowl design of decanter centrifuges is optimized for minimal friction and wear, which prolongs the lifespan of these components. The self-cleaning capabilities of many modern decanter centrifuges further reduce maintenance time and effort. These systems automatically clean the bowl and scroll, preventing the accumulation of materials that could affect performance. This reduces the labor required for maintenance and minimizes the downtime associated with cleaning, allowing the equipment to operate for longer periods without interruption. For businesses like Yixing Huading Machinery Co., Ltd., the emphasis on low maintenance is a fundamental aspect of our decanter centrifuges. Huading’s engineers design centrifuges with advanced lubrication and sealing systems, minimizing wear and ensuring reliable operation over extended periods. By reducing the frequency of maintenance tasks and extending the time between repairs, Huading helps our clients lower operating costs and improve productivity.

Decanter centrifuges are highly versatile machines, capable of separating a wide range of materials. These machines can handle everything from fine particles to coarse solids, depending on the specific application. The versatility of decanter centrifuges makes them invaluable across a variety of industries, including biomedicine, food processing, water treatment, and oil recovery. In industries like plant extraction, decanter centrifuges are used to separate solid plant material from liquid extracts, maximizing yield while ensuring high-quality products. In the dairy industry, they help clarify milk, removing unwanted solids to produce smooth, high-quality dairy products. Decanter centrifuges also excel in the oil industry, where they separate valuable oil from impurities, ensuring higher product purity and maximizing resource recovery. Yixing Huading Machinery Co., Ltd. understands the need for flexibility in industrial operations, and as such, our decanter centrifuges are designed to handle a diverse range of materials. Whether we are working with a fine slurry in the pharmaceutical industry or coarse solids in the mining sector, Huading’s decanter centrifuges can be customized to ensure that our clients get the best separation results for their unique needs. By designing flexible equipment that can accommodate a variety of feedstock, Huading provides solutions that help businesses optimize their processes.

The ability of decanter centrifuges to handle solids efficiently is one of the key factors that contribute to their success. These machines are designed to separate even the smallest solid particles from liquids, delivering high separation efficiency. The high centrifugal forces generated within the machine enable the separation of solids that might otherwise be challenging to remove with other technologies. The helical scroll design of the decanter centrifuge helps to move the separated solids toward the discharge port, while the liquid phase is directed to a separate compartment. This dual separation mechanism ensures that solid-liquid separation is both effective and efficient. The separation efficiency can reach up to 99%, which is critical in industries such as biomedicine, where purity is paramount, and the oil industry, where every drop of recoverable oil counts. Yixing Huading Machinery Co., Ltd. places a strong emphasis on the performance of its decanter centrifuges. Our engineers have developed models that consistently achieve high separation efficiencies, helping our clients meet stringent product specifications. By optimizing the design and operational parameters of our decanter centrifuges, Huading ensures that solid-liquid separation is as effective as possible, even in the most demanding applications.
