Custom Disc Stack Centrifuge

Huading disc centrifuge is a high-efficiency equipment that achieves liquid-liquid, liquid-solid, or liquid-liquid-solid three-phase separation through a high-speed rotating disc group.

Custom Disc Separator/Disc Stack Centrifuge Manufacturers

 Its core principle is to use the difference in sedimentation speed of materials of different densities in the centrifugal field, shorten the particle sedimentation distance through multiple layers of conical discs, and greatly improve the separation efficiency.

Basic structure

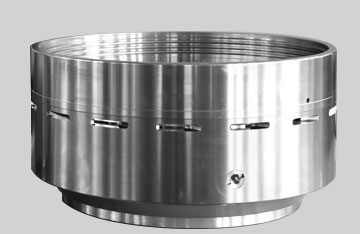

  • Drum

    The drum is the core component of the centrifuge. It is usually cylindrical and contains stacked discs (discs) with tiny gaps between them.

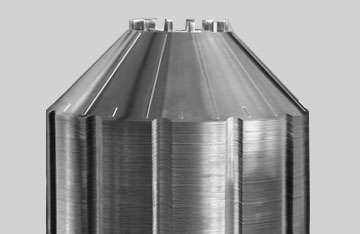

  • Discs

    The discs are a series of conical discs stacked together to form a narrow channel. There are tiny gaps between each disc for the sedimentation of solid particles or liquids.

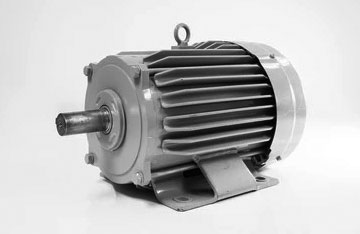

  • Engine

    The motor drives the drum to rotate at high speed through a transmission device.

  • Feed inlet

    Used to introduce the mixed liquid into the center of the drum.

  • Discharge port

    used for liquid discharge after separation

  • Separation mechanism

    After the material enters the drum, under the action of centrifugal force (usually up to 5000-15000 times gravity), the heavy phase (such as solid or high-density liquid) moves outward, the light phase gathers toward the center and finally discharged through different outlets.

  • Design advantages

    The disc gap can be as small as 0.3mm, which is suitable for fine separation of micron-sized particles (the minimum separation particle size is about 0.5μm); The larger the drum diameter, the higher the processing capacity.

  • Pattern

    It is available in batch (manual discharge) and continuous (self-cleaning or nozzle discharge), the latter of which is suitable for medium solids content (around 10%) or high concentration (up to 25%).



Advantage


  • Efficient separation

    Disc centrifuges use high centrifugal forces for fast and continuous solid-liquid or liquid-liquid separation.

  • Small footprint

    Thanks to its compact design, it is suitable for applications where space is limited.

  • versatility

    It can be used in a variety of industrial applications, such as food, pharmaceutical, chemical, petroleum, and other industries.



Company
Yixing Huading Machinery Co.,Ltd.
Yixing Huading Machinery Co.,Ltd. (Huading Separator) was established in 1954. It is reputable China Disc Separator Manufacturers and Custom Disc Centrifuge Suppliers of specialized products and engineering solutions in China, relying on its own key technologies for clarification, purification, and concentration.
The equipment (disc centrifuge, decanter centrifuge), systems, and services provided by Huading are specifically designed to help customers improve the performance of optimized processes. The solutions provided by Huading can help customers solve separation and filtration problems in the production process.
Huading's disc centrifuges and decanter centrifuges serve the industries of biomedicine, beverages, plant extraction, dairy products, the oil industry, chemical energy, water treatment, and other industries. The capacity of disc centrifuges and decanter centrifuges ranges from experimental 500L/H to industrial 90T/H, with a total of more than 100 standard models. China Ting's organization works closely with customers to help them stay ahead of the industry.
Efficient, powerful, and reliable. For more than 50 years, China Ting separators have always played the role of defender in the field of centrifugal separation technology. Therefore, it can be said that China Ting's development process has not only brought about its responsibility to customers, but also created the company's vision.
Certificate Of Honor
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
Knowledge
Disc separator/disc stack centrifuge Industry knowledge

Key Applications of Disc Stack Centrifuges in Various Industries

In the biomedicine and pharmaceutical sectors, maintaining high levels of purity and accuracy in separation processes is essential. Disc stack centrifuges are widely used for the separation of cells, proteins, and other biological components. These centrifuges offer several advantages, such as the ability to process large volumes of materials while maintaining consistent separation results. Huading Separator has been instrumental in providing specialized disc centrifuges that support the biopharmaceutical industry in producing high-quality, purified biological products. Applications in this industry include the purification of proteins, the isolation of cells for research or therapeutic purposes, and the clarification of fermentation broths. The technology behind Huading’s centrifuges ensures high separation efficiency, which is critical for bioprocessing applications like protein recovery, blood plasma separation, and vaccine production. By offering high-capacity, reliable equipment, Huading’s centrifuges enable pharmaceutical companies to streamline their production processes, reduce costs, and maintain product quality. Huading’s commitment to precision engineering ensures that each unit meets the demanding standards of the biomedicine field. Our systems are designed to handle sensitive materials without compromising integrity, making them the ideal solution for applications in cell culture, tissue engineering, and other critical bioprocesses.

The food and beverage industry has long relied on disc stack centrifuges for their ability to purify, clarify, and separate liquids efficiently. Huading Separator has provided robust solutions for the production of a wide range of food and beverage products, including fruit juices, oils, wine, and beer. In these applications, the disc stack centrifuge is used to remove solid particles, yeast, and other impurities from liquids, ensuring that the final product is free of contaminants. One of the most common uses of disc stack centrifuges in the food industry is juice clarification. The centrifuge helps to separate suspended solids from juice, improving the clarity and shelf life of the product. In olive oil production, centrifuges are used to separate oil from water and solid residues, yielding high-quality oil with minimal waste. Similarly, in beer and wine production, the centrifuge plays a crucial role in separating yeast, proteins, and other impurities, ensuring a clear, stable, and high-quality beverage. Huading’s disc centrifuges have proven to be indispensable in these processes, as they deliver high-quality separation results and are capable of handling high flow rates. The ability to scale from small, experimental operations to large industrial systems makes Huading’s centrifuges suitable for businesses of all sizes. Our expertise in this area ensures that customers can rely on our equipment to meet the specific needs of their production lines.

In industries that focus on plant extraction and the production of essential oils, disc stack centrifuges play a critical role in the extraction process. These centrifuges are used to separate oil from plant material, ensuring a pure and high-quality end product. The ability to efficiently separate essential oils, flavors, and fragrances from raw plant material makes disc stack centrifuges a valuable asset in the production of natural extracts. Huading Separator’s centrifuges offer precise control over the extraction process, allowing operators to adjust parameters such as speed and temperature to optimize the yield and purity of the extracted oils. The centrifuges also play a role in the clarification of extracts, removing residual impurities and solids that may be present in the oil. Whether the application involves the extraction of herbal oils, fragrances, or other plant-based products, Huading’s centrifuges provide the reliability and efficiency needed to enhance the extraction process. The use of disc stack centrifuges in this industry is essential for meeting the growing demand for high-quality, natural products. Huading’s equipment ensures that our clients can achieve the highest levels of efficiency while preserving the integrity of the extracted oils and maintaining sustainability in their production processes.

The dairy industry relies heavily on efficient separation processes to ensure the purity and quality of products such as milk, cream, and butter. Disc stack centrifuges are used extensively in dairy production for applications like milk clarification, cream separation, and whey processing. These centrifuges provide high throughput and reliable performance, which is essential for maintaining the consistency and quality of dairy products. For milk clarification, Huading Separator’s disc centrifuges are designed to remove impurities such as dirt, bacteria, and other unwanted particles, resulting in cleaner milk. In cream separation, the centrifuge efficiently separates the cream from the milk, producing high-quality cream with minimal waste. In whey processing, disc stack centrifuges are used to separate whey proteins from other by-products, enhancing the value of the final product. Huading’s disc centrifuges are engineered to handle large volumes of dairy products while ensuring high separation efficiency. Our products have been designed to meet the stringent hygiene and performance requirements of the dairy industry, helping our clients optimize their operations and improve product quality.

The oil and petrochemical industries rely on disc stack centrifuges for a wide range of applications, including the purification of crude oil, the separation of impurities from lubricants, and the treatment of petrochemical waste. These industries require equipment that can handle high viscosity fluids and materials with a range of contaminants, and disc stack centrifuges provide the perfect solution for such demanding tasks. Huading Separator’s centrifuges are used for the purification of crude oil by removing solid particles, water, and other contaminants. In lubricant production, disc stack centrifuges are used to remove impurities that can degrade the quality of the lubricant. These centrifuges are also employed in the treatment of petrochemical waste, helping to separate valuable components from waste streams and reduce environmental impact. The oil and petrochemical sectors require centrifuges that can operate under harsh conditions and deliver consistent performance. Huading’s centrifuges are designed with durability and reliability in mind, ensuring that clients can depend on them for efficient separation and purification, even in the most challenging environments.

Water and wastewater treatment is another critical application for disc stack centrifuges. In this sector, centrifuges are used to separate solid particles from liquids, which is essential for ensuring clean water for consumption, as well as for industrial applications. The technology behind disc stack centrifuges allows for the efficient separation of contaminants, helping to purify wastewater and meet environmental regulations. Huading Separator’s centrifuges are used in municipal water treatment plants, industrial wastewater treatment facilities, and even for desalination processes. The high separation efficiency of these centrifuges helps to reduce the volume of sludge and other waste products, making them ideal for handling large volumes of wastewater. In addition to improving the quality of treated water, Huading’s centrifuges also play a role in optimizing the overall efficiency of the treatment process. Our systems are engineered to handle varying flow rates and types of contaminants, making them a flexible solution for both large-scale and smaller, more specialized water treatment operations.

In the chemical and energy sectors, disc stack centrifuges are used for separating a wide range of chemical compounds, such as catalysts, solvents, and by-products. The ability to efficiently separate these components is crucial for ensuring that the final product meets the required specifications and that waste products are minimized. Huading Separator’s disc centrifuges are used in chemical processing to separate solid particles from liquids, remove unwanted contaminants, and purify chemical compounds. In energy production, disc centrifuges are used in the processing of biofuels, oil refineries, and other applications where high-efficiency separation is required. The centrifuges can handle a wide variety of chemical compositions, providing versatility and reliability across different types of production processes. Huading’s engineering solutions in the chemical and energy sectors help clients improve process performance while maintaining safety and regulatory compliance. Our centrifuges are designed to operate in demanding environments, providing superior separation and ensuring that the end products meet the necessary quality standards.
