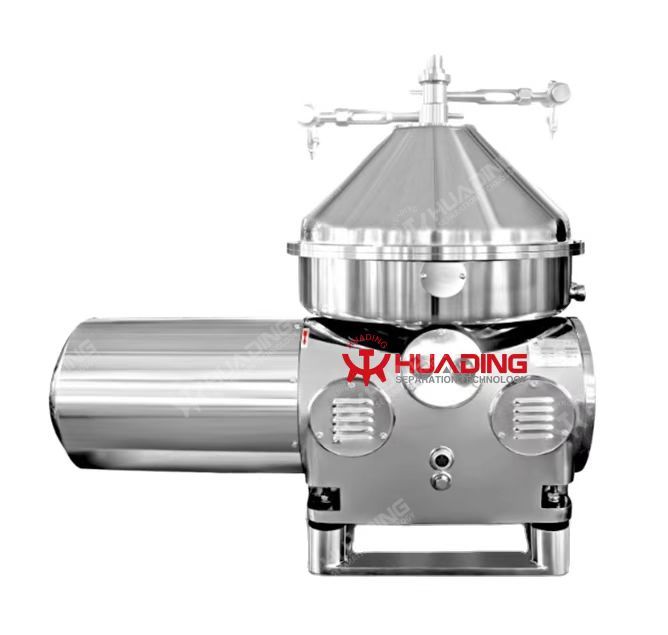

GQ series - clarification
GQ series - clarification

GQ series - clarification

Small
Medium
Large Manual
Semi-automatic
Fully automatic Sedimentation
Filtration
Centrifugal force Standard
Custom type

Huading GQ series tubular centrifuges are solid-liquid clarification equipment, designed for processing low-concentration (solid phase <1%), high-viscosity, micron-sized particle suspensions, and are widely used in biopharmaceuticals, Chinese medicine extraction, food and beverage, chemical and environmental protection and other fields.

Get A Quote
PREV：GF series - separationNEXT：No next article
  • Introduction
  • Parameter
  • Contact Us

 Its core technical features include:


  • Ultra-high-speed centrifugal force

    The wide speed reaches 28,000r/min, and the separation factor exceeds 19,800xg (GQ45), which is significantly better than ordinary centrifuges.

  • Precision separation capability

    It can handle particles as low as 0.1μm (such as colloidal impurities in Chinese medicine extracts).

  • Modular design

    The drum, drive system, and control system can be customized to adapt to different production scenarios.

  • GMP compliance

    Mirror-polished stainless steel body (SUS304/316L), supporting CIP online cleaning



 Drum structure optimization:


  • Aspect ratio control

    The effective height to diameter ratio of the drum of GQ105/125/150 reaches 6-8:1, which prolongs the material residence time and improves the separation accuracy.

  • Deposition volume grading

    From 0.4L for GQ45 to 10L for GQ150, covering laboratory trace samples to industrial-grade continuous production needs.

  • Material upgrade

    Optional titanium alloy or Hastelloy drum, suitable for highly corrosive materials (such as acid and alkali extracts).



Drive and control system:


  • High-precision power system

    Swiss ABB motor + German FAG bearing, ensuring the stability of speed above 20,000r/min (GQ45/GQ75).

  • Intelligent speed regulation

    Supports stepless frequency conversion speed regulation (0-28,000r/min), and monitors centrifugal force and temperature in real time through the touch screen.

  • Safety protection

    GQ150 is equipped with explosion-proof motor and nitrogen filling device to meet the requirements of chemical explosion-proof environment.



Functional scalability:


  • Cooling system

    Optional cooling coil with a heat dissipation area of ​​0.5-1.3m² to control material temperature (such as heat-sensitive biological products).

  • Lubrication solution

    Provide grease lubrication or oil-free lubrication system to reduce maintenance frequency.

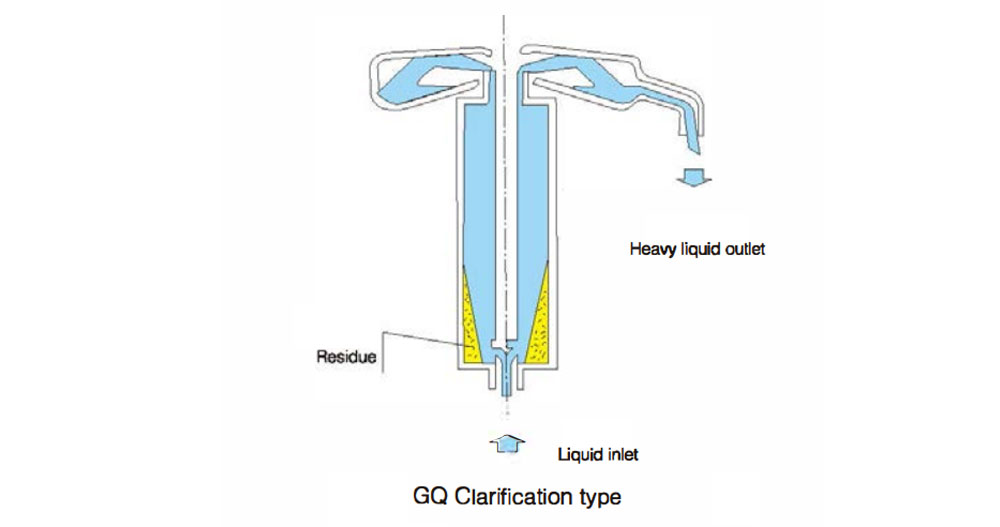

Detailed drawing

Model BOWL Passing capacity (Kg/h) Motor power (kw) Motor speed (r/min) Mahinec weight  (kg)
Diameter Height Volume Rotation speed Separation factor
GF45  GQ45 45 280 0.45 25000~50000 60000 150 0.75 6000~12000 90
GF75  GQ75 75 450 2.7 19000~21000 22500 500 1.5 2880 300
GF105  GQ105 105 730 6 16300~19000 21000 1500 2.2 2880 480
GF125  GQ125 125 730 7.4 14000~16000 18000 2000 3 2880 520
GQ137  GF137 137 730 9 14000~15000 17000 3000 3 2880 550
GF150  GQ150 142 730 10 14000~15000 17000 3000 3 2880 550



Selection dimensions

Processing scale laboratory level (GQ45) → pilot level (GQ75) → industrial level (GQ105/125/150).
Material characteristics high viscosity (select GQ125 with large aspect ratio), micron-sized particles (select GQ45/GQ75 with high speed).
Maintenance cost GQ75/GQ105 supports fast drum replacement (within 2 hours), suitable for frequent material changes
