Processing of Waste Water Containing Oil

Introduction to Oily Wastewater Challenges

In the global industrial landscape, the management of waste water containing oil has become an unavoidable challenge for sectors ranging from petrochemicals and metalworking to food processing and marine transport. Oily wastewater typically contains free oil, emulsified oil, dissolved oil, and suspended solids. If discharged directly into the environment, these pollutants form an impermeable film on water surfaces, preventing oxygen exchange and devastating aquatic ecosystems. Furthermore, strict environmental regulations now impose heavy fines for non-compliance, making efficient treatment not just a moral obligation but a financial necessity for modern enterprises.

Traditional methods like gravity separation, air flotation, or chemical coagulation often struggle to handle complex emulsions or high solid loads. These methods are frequently plagued by high maintenance costs, excessive chemical usage, and the inability to recover high-purity oil. Huading Separator addresses these pain points with advanced Centrifugal force technology, providing a robust solution that turns environmental liabilities into valuable resource recovery opportunities.

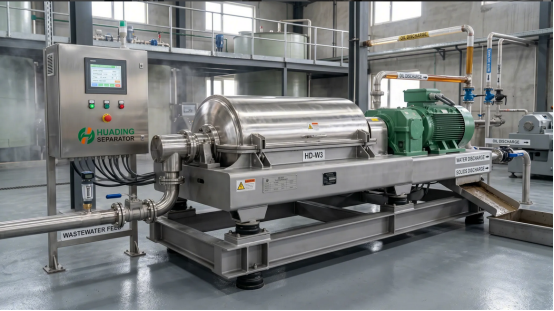

The Huading 3-phase decanter Solution

Our flagship solution for this application is the 3-phase decanter centrifuge. Unlike 2-phase separators that only separate solids from liquids, the 3-phase system simultaneously isolates two immiscible liquid phases (oil and water) and one solid phase in a single, continuous process. This "one-step" efficiency is what sets Huading technology apart in the competitive separation market.

Key Working Principles:

• Feeding:The contaminated mixture is fed through a stationary inlet pipe into the accelerating distributor of the bowl.
• Acceleration:Under the influence of high Centrifugal force, the components are stratified based on their density. The heavy solids settle against the bowl wall, the heavy liquid (water) forms an outer ring, and the light liquid (oil) forms an inner ring.
• Separation & Discharge:The Screw conveyor continuously pushes the solids toward the conical end for discharge. Simultaneously, the clarified water and purified oil are discharged at the cylindrical end through separate adjustable outlets.

Advanced Technical Features and Benefits

Huading’s engineering team has optimized every component of the centrifuge to ensure maximum reliability and performance in harsh industrial environments. Our use of Duplex stainless steel for critical parts ensures resistance against the corrosive nature of saline or acidic wastewaters. To combat the abrasive nature of suspended solids like sand or metal fines, we apply a thick layer of Tungsten carbide tiles to the screw conveyor flights, significantly extending the service life of the machine.

Another breakthrough is our Mechanical thickening capability. By precisely controlling the bowl speed and differential speed via our dual VFD system, we can achieve high-density sludge discharge, reducing the volume of hazardous waste by up to 90%. This drastic reduction in sludge volume directly translates into lower transportation and disposal costs for the operator.

Economic Value and Environmental Compliance

The primary driver for implementing a Huading Decanter centrifuge is the rapid Return on Investment (ROI). By recovering high-purity oil (often exceeding 98% purity), companies can sell this oil back into the market or reuse it as fuel, effectively paying for the equipment through resource recovery. Moreover, the clarified water phase can often be reused for cooling or cleaning within the factory, promoting a "Closed-loop" water management system that aligns with "Zero Liquid Discharge" (ZLD) goals.
