Separator Functional Principles: Types, Technologies, and Applications

The separator, also known as a disc centrifuge, is a vertically oriented centrifuge used for separating and clarifying liquids. It helps divide different phases of materials—solids, and liquids—based on their physical properties.

This separation process is commonly applied in industries such as food processing, chemical manufacturing, pharmaceuticals, and wastewater treatment.

In this blog, we’ll dive into how separators function, explore different separation technologies, their structures and the wide range of applications they support.

A Brief Overview of the Separation Process

The separation process is all about breaking down a mixture into its individual components based on differences in physical properties such as density, particle size, or phase. Separators carry out this process efficiently, using mechanical, thermal, or chemical techniques to separate the materials. The goal is to isolate the desired phase or product while removing or processing the waste.

Separation methods generally fall into two categories: mechanical separation (such as filtration, centrifugation, or settling) and physical separation (including distillation and membrane filtration). In this blog, we’ll focus on mechanical separation, where force or pressure is applied to separate materials with different physical properties.

How Does a Separator Work?

A separator works by applying force to a mixture to induce separation. The force can be centrifugal (in centrifuges), gravitational (in settling tanks), or filter-based (in membrane filtration systems).

The common principle used in separators is centrifugation, where centrifugal force is applied to accelerate the separation of different phases in a mixture. The heavier phase, such as solids, moves outward, while lighter phases, such as oils or water, tend to move inward.

In decanter and disc stack centrifuges, the rapid rotation creates centrifugal force, pushing denser particles toward the bowl’s walls. The denser material is collected there, while the less dense liquid is discharged.

Different Separation Technologies and Structures

Separators come in a variety of designs, each tailored to different materials, flow rates, and separation needs. The primary separation technologies include decanter centrifuges, disc stack centrifuges, and membrane filters. Let’s explore each one in more detail.

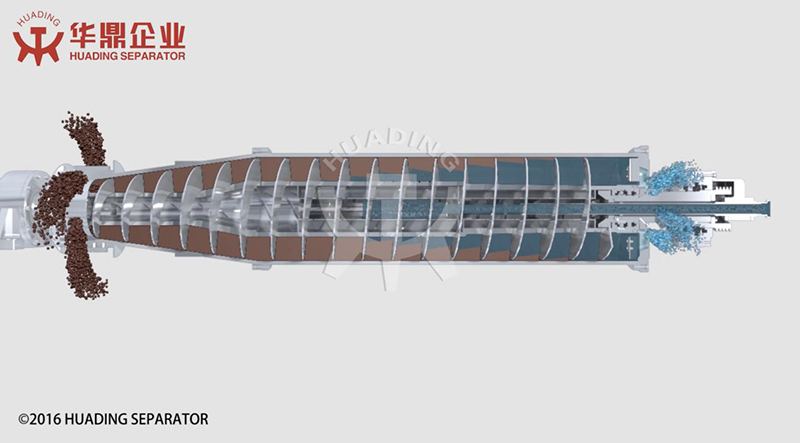

Decanter Centrifuges

The decanter centrifuge operates by feeding the mixture into the rotating cylindrical bowl through a stationary infeed pipe.

The mixture accelerates to the bowl’s circumferential speed, where the centrifugal force causes the separation of phases.

The denser solid particles are pushed outward toward the bowl’s walls, while the lighter liquid phase flows to the centre.

The solids are then collected and discharged through a screw conveyor, while the liquid phase is removed through an outlet.

This continuous process ensures efficient separation of solids from liquids.

Key Features:
•Ideal for separating large solids from liquids.
•It is commonly used in wastewater treatment, oil and gas, and food processing.
•Efficient for continuous operations, handling high volumes with ease.

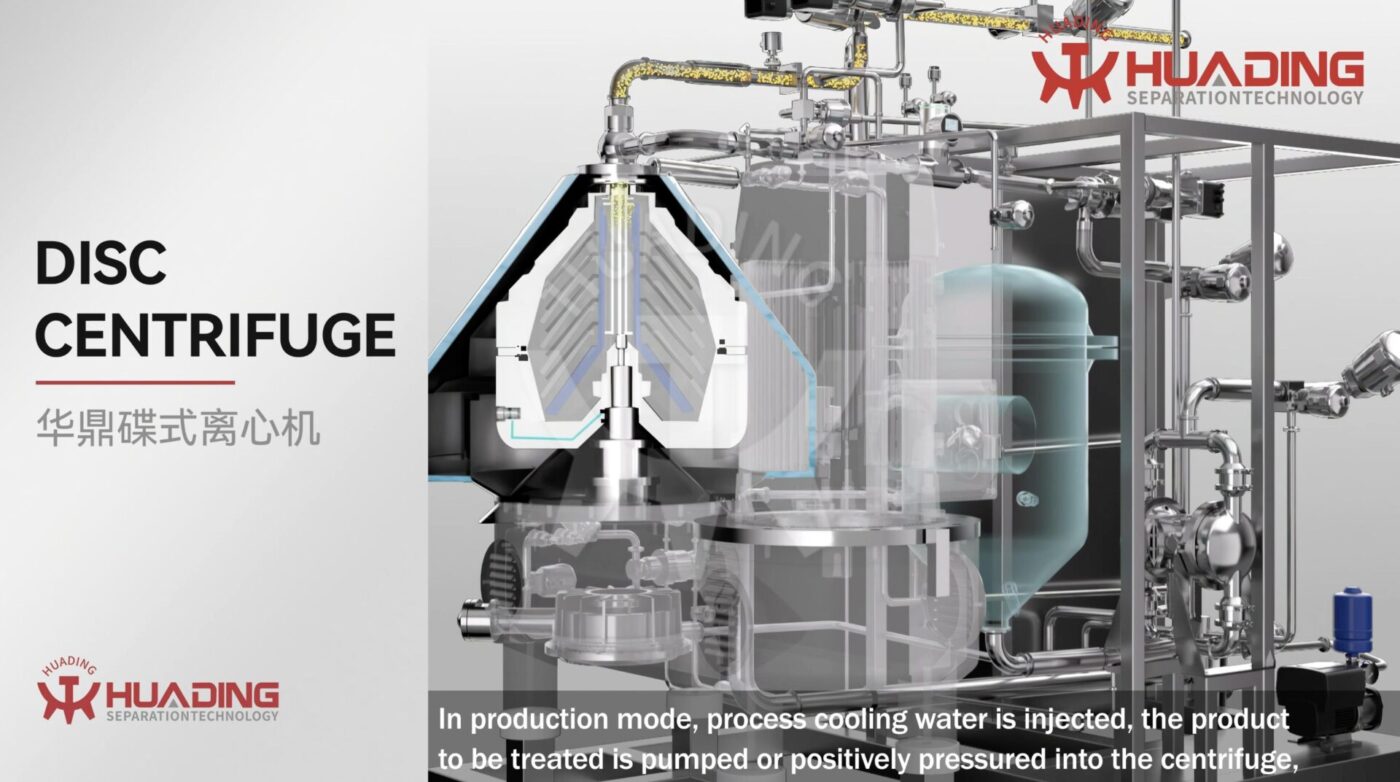

Disc Stack Centrifuges

Disc stack centrifuges are designed for fine particle separation or for separating liquid-liquid mixtures with different densities.

The mixture is introduced into the center of the rotating disc stack, where it accelerates to the separator’s bowl speed.

As the mixture moves through the stacked discs, the centrifugal force pushes the solid particles toward the outer edge, where they accumulate in the solids space.

Meanwhile, the liquid phases pass through the discs, flowing upward to the upper part of the bowl. From there, they are discharged through an impeller or weir, depending on the design.

Key Features:
•Satisfactory for separating fine particles or immiscible liquids.
•Common in dairy, pharmaceutical, chemical, and bioprocessing industries.
•Provides higher throughput and finer separation due to increased surface area within the disc stack.

Membrane Filters

Membrane filtration utilizes a semi-permeable membrane to separate components based on size or chemical properties. The liquid mixture is forced through the membrane, which only allows certain particles or molecules to pass through while blocking others.

Depending on the filtration requirements, different types of membranes—such as microfiltration, ultrafiltration, nanofiltration, and reverse osmosis—are used. The filtered liquid passes through the membrane, while the retained particles or contaminants are removed, ensuring highly effective separation.

Key Features:
•Highly effective for fine filtration, especially for liquids.
•Widely used in water treatment, biotechnology, and pharmaceutical applications.
•Ideal for separating small molecules, ions, or microorganisms like bacteria.
•Each of these separator types has a unique design and process suited for different separation needs, making them adaptable to a wide range of industries and applications.

Designs for Different Separation Duties

Separators are designed to meet the specific requirements of different separation tasks. Here are the main designs commonly used:

Clarifier

Clarifiers are designed to remove suspended solids from liquids. By utilizing gravity or centrifugal force, they allow heavier particles to settle at the bottom of the tank, leaving the clarified liquid at the top. This design is commonly used in water treatment plants to remove sediment, debris, and other contaminants from water or wastewater.

Purifier

Purifiers are designed to separate unwanted impurities, such as bacteria, oil, or particles, from a liquid. They typically use centrifugal force or filtration methods to ensure that only the pure liquid remains after separation. Purifiers are widely used in industries such as food, beverage, and pharmaceuticals.

Concentrator

Concentrators are used to remove excess liquid from a mixture, leaving a higher concentration of solids behind. This process is ideal for further processing or reuse of the remaining solid phase.

Concentrators are often employed in industries like mining, food processing (such as concentrating fruit juices), and chemical processing, where concentrating valuable components is necessary for efficiency and product quality.
