Several methods are employed to separate the liquid phase and solid particles, with the decanter centrifuge and disc centrifuge being the prevalent equipment of centrifugation separation.
Decanter centrifuges are favored for their efficient and stable separation performance, making them suitable for continuous solid-liquid separation processes. In contrast, disc centrifuges are widely utilized for high-demand separation tasks due to their compact design and high separation precision for fine particles. Depending on specific application requirements, these two types of equipment can be used separately in processing workflows or operated in tandem to achieve ideal separation results.
Let us delve deeper into comparing the characteristics, functions, and technical parameters of decanter centrifuges and disc centrifuges to assist users in selecting the appropriate type of centrifuge.
1 Characteristics and Functions of Decanter Centrifuges
1.1 Structure and Operating Principle

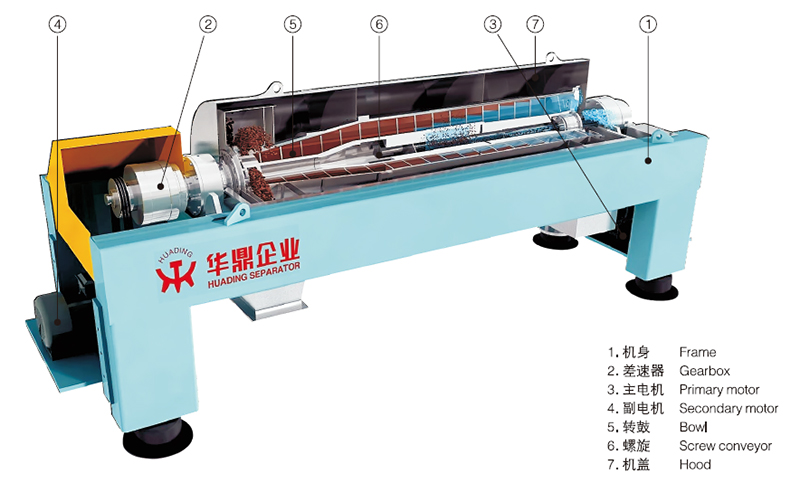

The decanter centrifuge, also known as the horizontal spiral sedimentation centrifuge, primarily consists of a rotating drum, a spiral conveyor, a differential gearbox, and a drive mechanism. Its operating principle involves injecting the feed mixture into the drum, where the centrifugal force generated by high-speed rotation causes solid particles in the mixture to settle against the drum wall. The role of the spiral conveyor is to discharge the settled solid particles from the drum, while the liquid phase is expelled from the opposite end. Decanter centrifuges are well-suited for continuous separation operations, particularly for materials with a high content of solid particles.
1.2 Technical Parameters
•Rotational Speed:Typically ranges from 2,000 to 5,000 rpm, but can be adjusted according to the characteristics of the material. Higher speeds enhance separation efficiency, although energy consumption will also increase correspondingly.
•G-Force:The centrifugal force of decanter centrifuges usually falls between 1,000 and 5,000 G, making them suitable for medium to high-density solid-liquid separations.
•Processing Capacity:Capable of handling hundreds of liters to hundreds of kiloliters per hour, depending on the size of the equipment and the characteristics of the material.
•Spiral Differential:The differential gearbox adjusts the differential speed between the drum and the spiral conveyor, controlling the rate of solid discharge and thereby influencing separation performance.
•Construction Material:Typically made of stainless steel to prevent corrosion and ensure the longevity of the equipment.
2 Characteristics and Functions of Disc Centrifuges
2.1 Structure and Operating Principle

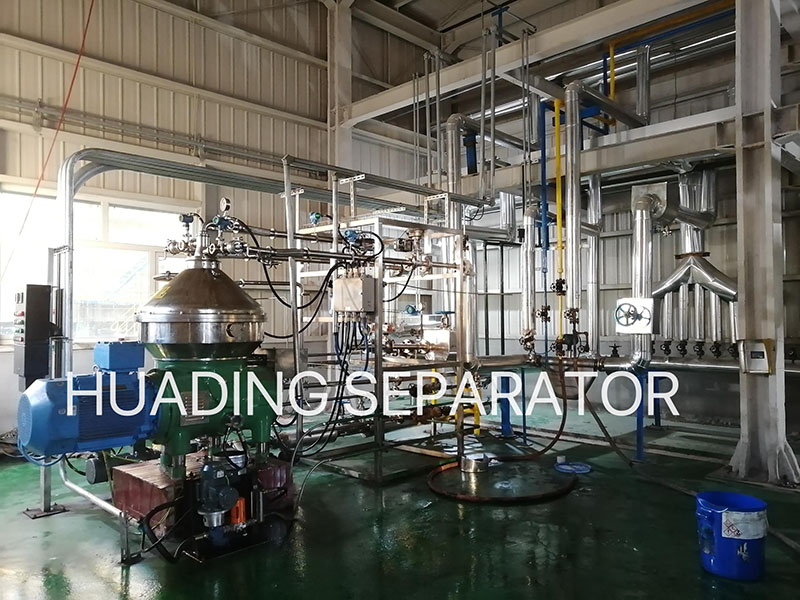

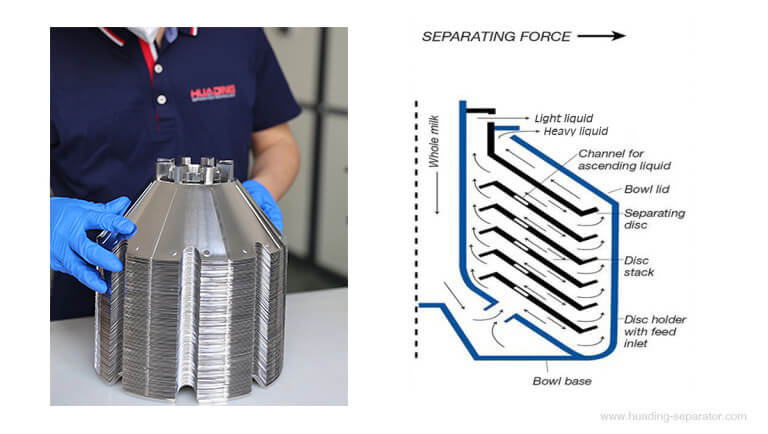

The disc centrifuge mainly consists of a rotating drum, a set of conical discs, nozzles or valves, and a drive system. Its operating principle involves multiple conical discs arranged inside the drum, where the material flows outward through the gaps between the discs under the influence of centrifugal force. Heavier substances (such as solids or denser liquids) settle toward the outer edge, while lighter materials move inward, thus achieving separation. Disc centrifuges are particularly suited for processing materials with a low solid content, making them ideal for applications requiring fine separation, such as emulsions and suspensions.
2.2 Technical Parameters
•Rotational Speed:Typically ranges from 5,000 to 10,000 rpm, with higher speeds making them suitable for separating materials with low solid content.
•G-Force:The centrifugal force of disc centrifuges can reach between 10,000 and 15,000G, making them very effective for the separation of fine particles.
•Processing Capacity:The processing capacity of disc centrifuges generally ranges from hundreds of liters to tens of kiloliters per hour, depending on the specifications of the equipment.
•Disc Structure:The gap between the discs is usually 0.5 to 1 millimeter, facilitating high-precision solid-liquid separation.
•Level of Automation:Typically equipped with automatic cleaning and sludge discharge systems, enhancing the convenience of continuous operation.
3 Comparison of Decanter Centrifuges and Disc Centrifuges
3.1 Separation Characteristics and Processing Capacities of Decanter Centrifuges and Disc Centrifuges
The separation capability of a centrifuge primarily depends on its design structure, rotational speed, centrifugal force, and the characteristics of the material being processed. Understanding the different separation characteristics of these two types of centrifuges is crucial when selecting or improving separation equipment.
3.1.1 Separation Characteristics and Processing Capacities of Decanter Centrifuges
Decanter centrifuges utilize the centrifugal force generated by the high-speed rotation of the drum to deposit solid particles against the drum wall, from where the settled material is removed by a spiral conveyor. They are particularly suited for suspensions with a high solid content and are commonly used in applications such as sludge treatment and oilfield drilling fluid purification. The specific characteristics include:
•Separation Precision:Decanter centrifuges are effective for the sedimentation of medium-sized solid particles and can efficiently separate liquid-solid mixtures with significant density differences. However, they may not be the good choice for applications requiring high precision in fine separations.
•High Processing Volume:Their structural design supports continuous processing, allowing decanter centrifuges to handle large volumes of material, with processing capacities reaching several hundred liters to hundreds of kiloliters per hour.
•Adjustability:The differential speed adjustment mechanism of the equipment allows for tailored speed control based on the specific characteristics of solid materials, optimizing separation effectiveness while maintaining high processing efficiency.
3.1.2 Separation Characteristics and Processing Capacities of Disc Centrifuges
Disc centrifuges create multiple separation layers through the arrangement of several sets of discs within the drum, making it easier for fine particles in the material to settle on the disc surfaces. This design gives them an advantage in processing low solid content liquids, particularly in scenarios requiring high precision separation.
•High Separation Precision:Disc centrifuges excel at separating fine particles and liquids with minimal density differences, such as emulsions and vegetable oils. The design of the discs allows for higher separation precision, enabling the separation of even finer suspended particles.
•Lower Processing Volume:Compared to decanter centrifuges, disc centrifuges are better suited for smaller processing volumes that require high-precision separation. Their high G-force produces a powerful separation effect, but their processing capacity typically only reaches a few hundred liters to tens of kiloliters per hour.
•Self-Cleaning Functionality:Disc centrifuges can be equipped with automatic cleaning and sludge discharge systems, making them suitable for continuous operation in applications with high cleanliness requirements, such as biopharmaceutical and food processing industries.
3.2 Operational Precautions
Due to their different operational structures and applications, decanter centrifuges and disc centrifuges have unique operational requirements and precautions to ensure safe and efficient operation.
3.2.1 Operational Precautions for Decanter Centrifuges
•Startup and Shutdown:Before starting, it is essential to check for any foreign objects or anomalies inside the equipment and ensure cleanliness both inside and outside the machine. During operation, avoid frequent starts and stops to reduce wear on the equipment.
•Solid Discharge Adjustment:Operators should adjust the differential speed parameters based on the solid content to prevent subideal separation results caused by either too rapid or too slow solid discharge. For materials with larger solid particles, a higher differential speed setting is advisable, while finer particle materials require a lower differential speed.
•Monitoring During Operation:Regularly check the operation of the spiral conveyor and the differential mechanism to prevent mechanical failures that could reputable to decreased separation efficiency or equipment damage.
•Preventing Clogging:When processing high-viscosity or high-solid-content materials, closely monitor the conditions of the spiral and discharge ports, promptly clearing any blockages to maintain normal equipment operation.
3.2.2 Operational Precautions for Disc Centrifuges
•Material Control:Disc centrifuges have stringent requirements regarding material particle size, and the solid content should not be excessively high to avoid damage to the equipment. Ensure that the feed material is uniform and that foreign objects do not enter the system during loading.
•Disc Gap Maintenance:The gaps between the discs are relatively small, necessitating measures to prevent the accumulation of solid particles, as this can affect the separation precision and efficiency of the equipment. Before operation, check that the disc assembly gaps are within the acceptable range.
•Automatic Cleaning System:Disc centrifuges are typically equipped with an automatic cleaning system, and the cleaning program should be run regularly during operation to prevent residual materials from clogging the equipment, thereby impacting separation performance.
•Temperature Control:Some high-precision separation processes are sensitive to temperature fluctuations. Operators should monitor the feed temperature to avoid fluctuations that could affect the separation results. Maintaining a constant temperature is particularly crucial in biopharmaceutical and food separation applications, as it significantly impacts the quality of the final product.
| Item |
Decanter Centrifuge |
Disc Centrifuge |
| Solid Discharge |
Solid discharge controlled by adjusting differential speed. |
Uses nozzles for discharge, requiring regular cleaning for smooth operation. |
| Operating Mode |
Suitable for continuous operation, handling high solid content. |
Supports both continuous and batch modes (self-cleaning type). |
| Design Complexity |
Simple design, easy to maintain. |
Complex design with more moving parts, requiring higher maintenance. |
| Control System |
VFD controls the main motor and vice motor, equipped with safety monitoring devices. |
PLC-based control system with operational sequence logic. |
| Auxiliary Systems |
None. |
Requires a working water system (self-cleaning) for automatic cleaning functionality.
Requires a operating water system (self-cleaning) for automatic solid discharge functionality.
|
| Startup and Shutdown |
Check equipment before startup; avoid frequent starts and stops to reduce wear. |
Ensure uniform material feeding and prevent foreign objects from entering. |
| Operational Checks |
Regularly inspect the spiral conveyor and differential mechanism. |
Check the gap between disc groups to prevent solid particle accumulation. |
| Clog Prevention |
Timely removal of blockages when handling high-viscosity materials. |
Regularly run cleaning programs to prevent residue buildup. |
| Temperature Control |
Fewer temperature requirements; focus on equipment status. |
Monitor feed temperature to ensure stability, affecting final product quality. |
3.3 Maintenance and Care
The efficient operation of centrifuges relies on proper maintenance and care. Regular inspections and cleaning can extend equipment lifespan and ensure stable separation performance.
3.3.1 Maintenance and Care for Decanter Centrifuges
•Lubrication System Inspection: Key components of decanter centrifuges, such as bearings, spiral conveyors, and differential mechanisms, require regular lubrication to maintain smooth operation and reduce wear. It is advisable to periodically replace lubrication oil and check the lubrication system for obstructions.
•Cleaning of Drum and Spiral: After processing high solid content materials, the drum and spiral may accumulate significant residue, necessitating regular cleaning to avoid impacting the separation efficiency in subsequent operations.
•Sealing Device Maintenance: Sealing devices are crucial for the normal operation of the equipment. Regular checks for wear on seals should be conducted, with timely replacements to prevent leakage or contamination.
3.3.2 Maintenance and Care for Disc Centrifuges
•Disc Cleaning: As the core separating component of disc centrifuges, discs must be cleaned regularly to prevent solid particle buildup that can clog the gaps between discs. While disc centrifuges are equipped with automatic cleaning systems, periodic manual inspections remain essential.
•Nozzle or Discharge Port Inspection: The nozzles and discharge ports of disc centrifuges are critical channels for material discharge and are susceptible to blockage. Regular cleaning of these components is necessary to ensure smooth discharge processes.
•Motor and Control System Maintenance: The high rotational speed of disc centrifuges places significant demands on the stability of motors and control systems. Regular inspections should verify normal motor operation and the accuracy of control system parameters to ensure stable system performance.
•Temperature Sensor Calibration: In separation processes with stringent temperature requirements, the accuracy of temperature sensors is vital. Regular calibration and testing of sensors are essential to ensure data accuracy and to control temperature fluctuations during the separation process.
| Maintenance Item |
Decanter Centrifuge |
Disc Centrifuge |
| Core Component Cleaning |
Clean drum and spiral regularly to avoid residue affecting separation. |
Clean discs periodically to prevent clogging. Manual checks are needed after automatic cleaning. |
| Motor and Control System Maintenance |
Conduct routine motor maintenance for stable operation. |
Requires frequent inspections for control accuracy at high speeds. |
| Temperature Monitoring and Sensor Calibration |
Regular temperature monitoring and sensor calibration needed. |
Periodic calibration is essential for temperature-sensitive processes. |
3.4 Comparison of technical parameters
| Technical Parameter |
Decanter Centrifuge |
Disc Centrifuge |
| Speed |
2000-5000 rpm |
5000- 10000 rpm |
| G-Force |
1000-5000G |
10000- 15000G |
| Processing Capacity |
hundreds of liters to hundreds of kiloliters per hour
|
hundreds of liters to tens of kiloliters per hour
|
| Solid Content Suitability |
Medium to high content |
Low content |
| Structural Features |
Spiral conveyor, drum differential |
Conical disc structure, automatic cleaning system |
| Operation Mode |
Continuous discharge, suitable for large-scale production |
Intermittent discharge, suitable for precise separation |
Choosing the Right Centrifugation Equipment: Decanter vs. Disc Centrifuges
When selecting centrifugation equipment, businesses should align their choice with the material characteristics, processing capacity, and required separation precision. Decanter centrifuges are particularly suitable for the continuous separation of high solid content materials, offering lower maintenance costs and serving as a crucial line of defense in processing industrial fluids with heavy sludge. In contrast, disc centrifuges are renowned for their high centrifugal force, effectively removing fine particles and enabling the continuous separation of two immiscible liquids, making them widely used in the biopharmaceutical and food processing industries.
